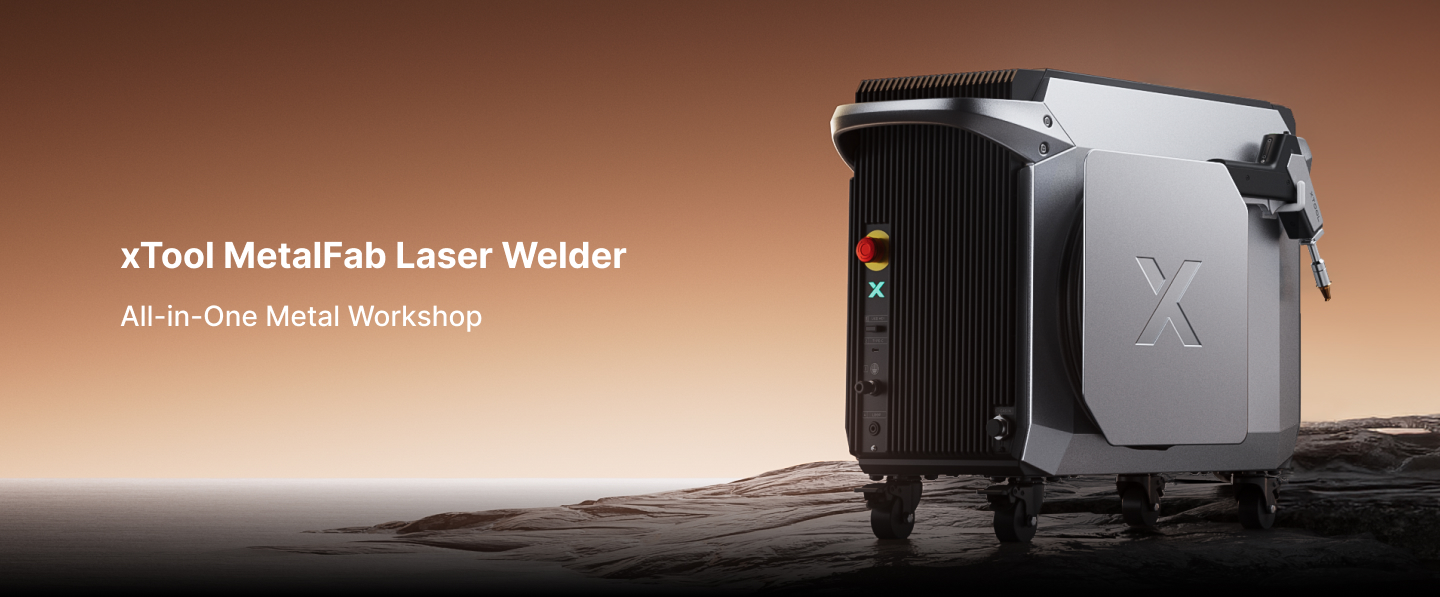

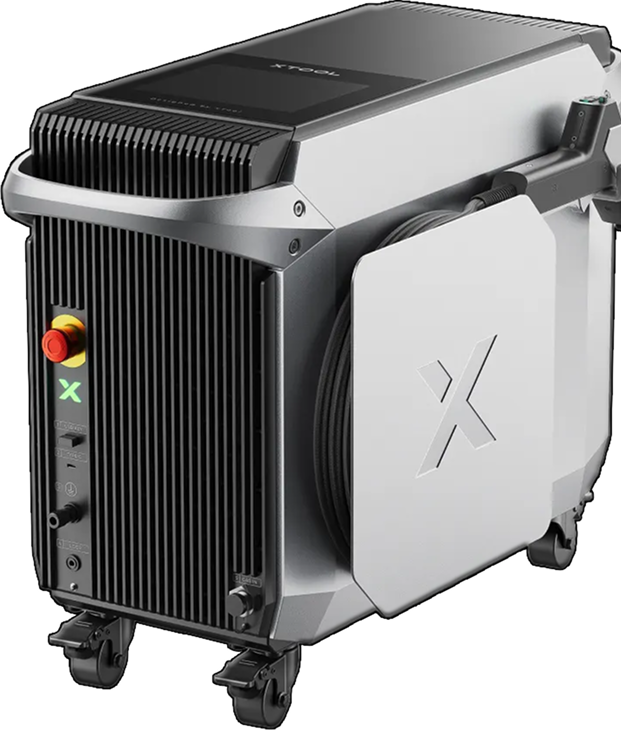

xTool MetalFab Laser Welder - 1200W

Product# P1030673

Key Features:

  • All-in-One Solution: Weld, cut, and clean with one space-saving, cost-effective device
  • Professional Performance: Delivers stable, precise results on various metals
  • Easy to Use: Simple one-click setup with 108+ pre-set parameters
  • Durable & Safe: Features a 10,000+ hour lifespan, 24/7 stability, and robust safety protections

Please Note: Special order terms apply: Payment in full required when order is placed. This item cannot be returned or cancelled for any reason. This item is unable to be shipped outside the U.S.

Talk to an Expert

Ask one of our 3D Printing Specialists

Dont't Forget an Extended Warranty!
Low Price Guarantee - Price Match

Low Price Guarantee

Shop with Confidence

Dynamism will match a competing offer on qualified items. Learn More

Usually ships in 1-2 weeks
  • Brand New
  • Unlimited Toll-Free Support
$7,999.00

Who We Are

Founded in 1997, we bring next-generation technology to customers, with an emphasis on expertise and white-glove service. Showrooms in Chicago, Detroit, Tokyo, and Seoul.

Our Company

The leading national supplier of Desktop 3D printers. Expertise in both Industrial and Desktop 3D printing. Supplier of next-generation Metal, SLS, ultrafast Industrial printers.

Customer Benefits

  • White glove support
  • On-site support options
  • Training packages


Product Overview

Key Features

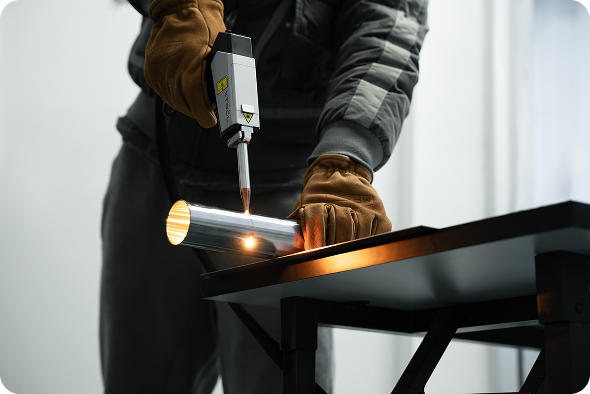

Professional-Grade Welding

No experience needed.

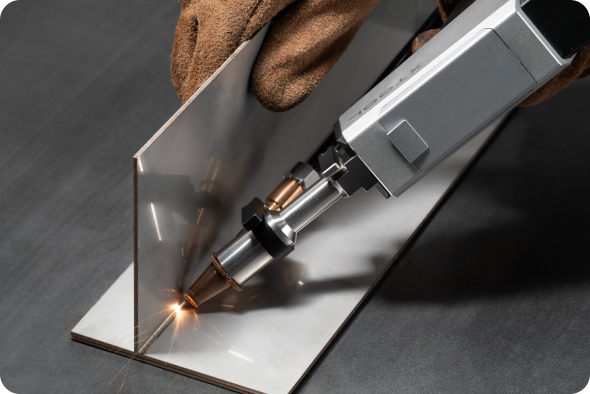

Integrated Welding Gun

Smart, easy, precise laser welding.

108+ Parameter Presets

Automated and optimized welding settings.

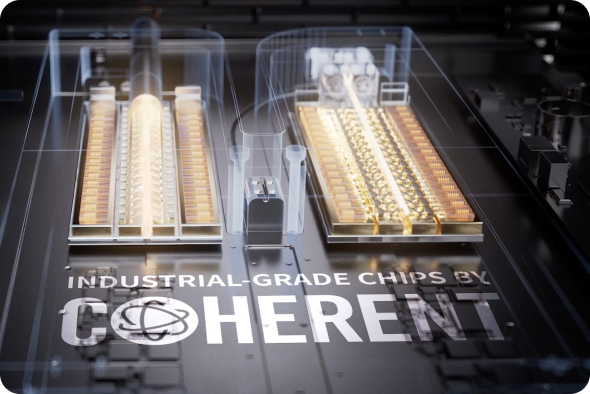

Industrial-Grade Coherent Chip

Durable, stable laser power.

24/7 Operation

Non-stop industrial production.

All-Weather Performance

Reliable in any workshop climate.

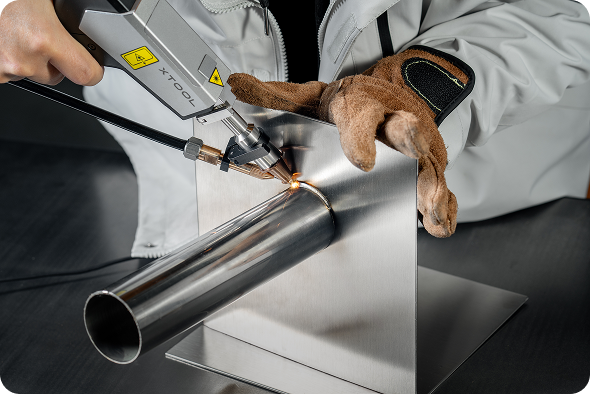

Precision Welds

Strong and clean laser welds.

Save 50% On Gas

Innovative, efficient gas-saving technology.

The Ultimate Laser Welding Solution For Everyone

30 Minute Training
(GUI-guided operation)

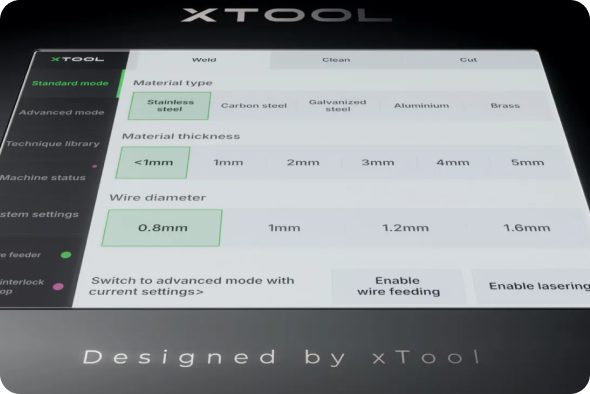

Beginner Friendly Software

Cost Effective For Creators and Small Businesses

Material Compatibility

Material
Weld
Engravable
Carbon steel/low-alloy steel (A36/Q235/#45)
0.2 - 5 mm
✓
Alloy steel/tool steel/high-strength steel
0.2 - 5 mm
✓
Stainless steel (304, 316, 430)
0.2 - 5 mm
✓
Galvanized sheet
0.2 - 5 mm
✓
Aluminum alloys
0.2 - 4 mm
×
Brass
0.2 - 4 mm
×
Titanium alloys
0.2 - 5 mm
✓
Nickel alloys
0.2 - 3 mm
✓
Bronze
0.2 - 4 mm
×
Magnesium alloys
0.2 - 3 mm
×
Cobalt-based alloys
✓
✓
Painted/coated sheet
✓
✓

Specifications

Processing Capacity
Laser Power
1200W
Laser Type
Fiber Laser
Processing Mode
Welding / Cutting / Rust Removal & Cleaning
Welding Mode
Seam Welding/Tack Welding/Pulse Welding
Supported Materials
Stainless steel: 304/316/410/430
Aluminum/aluminum alloy: 1060/5083/6061/6063/7075
Carbon steel: A36/Q235/1095/#45
Titanium/titanium alloy: Gr.5/Ti-15V-3Cr-3Sn-3Al
Brass: C26000/C28000/C36000
Galvanized sheet: DX51D
Magnesium alloy, Nickel alloy, Zinc alloy, and more
Welding Thickness (Single-sided Penetration)
Min. 0.008''(0.2mm) metal, Max. 0.2''(5mm) Stainless Steel/Carbon Steel/Galvanized Sheet/Titanium, 0.16''(4mm) Aluminum/Brass*

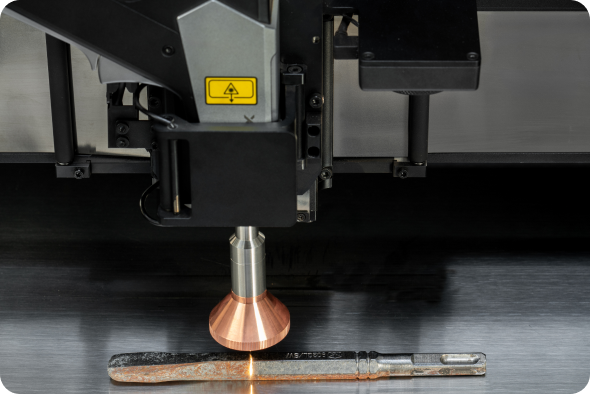

Cleaning Width
Max. 1.77 in (45 mm) Rust/Paint Cleaning (Extra MaxClean Accessory Required)

Max. 0.39 in (10 mm) Post-weld Cleaning
General
Wavelengths
1080 ± 10 nm
Photoelectric Conversion Rate
36%
Recommended Gases
Welding: 99.99% Nitrogen or 99.99% Argon
Cutting/Cleaning: 99.99% Nitrogen or 99.99% Argon or Air
Cooling System
Air-cooling
Safety Certification
Class 4 Laser Safety
Rated Power
4200W
Input Voltage
200-240V, AC 50/60Hz
Full-load Current
MAX 21A
Storage Temperature
14 ℉ - 140 ℉ (-10 ℃ - 60 ℃)
Operation Temperature
14 °F - 104 ℉ (-10 ℃ - 40 °C)
Product Dimensions
Machine Dimensions
28.66 × 12.87 × 20.16 in (728 × 327 × 512 mm)
Machine Weight
38.2 kg
Integrated Wire Feeder
No (Free Wire Feeder Machine Included)
Cable Length
196.85 in (5 m)

What's in the box

Wire feeder

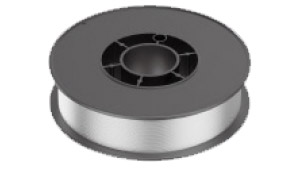

Stainless steel wire 1 mm

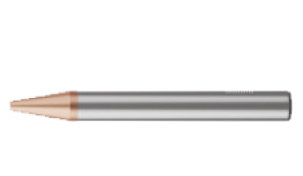

Cutting tip

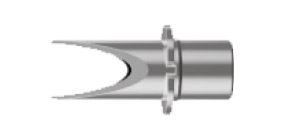

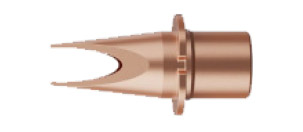

Welding nozzle
(For autogenous welding)

Cleaning nozzle

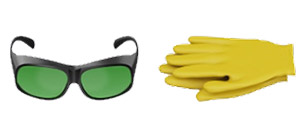

Safety goggles and gloves
