Xact Metal XM300G

Product# XACT-XM300G

Key Features

  • Single, dual, or quad-laser configurations
  • Simultaneous fusion for faster print speeds
  • 300 × 300 × 350 mm build volume (upgradable to 450 mm height)
  • 400W or 700W fiber laser options

Talk to an Expert

Ask one of our 3D Printing Specialists

Dont't Forget an Extended Warranty!
Low Price Guarantee - Price Match

Low Price Guarantee

Shop with Confidence

Dynamism will match a competing offer on qualified items. Learn More

Shipment expected Q1 2027
  • Brand New
  • Includes Warranty
  • Unlimited Toll-Free Support

Contact us for detailed purchasing support and custom pricing. A Dynamism 3D Printer specialist will contact you within one business day.

Who We Are

Founded in 1997, we bring next-generation technology to customers, with an emphasis on expertise and white-glove service. Showrooms in Chicago, Detroit, Tokyo, and Seoul.

Our Company

The leading national supplier of Desktop 3D printers. Expertise in both Industrial and Desktop 3D printing. Supplier of next-generation Metal, SLS, ultrafast Industrial printers.

Customer Benefits

  • White glove support
  • On-site support options
  • Training packages


Product Overview

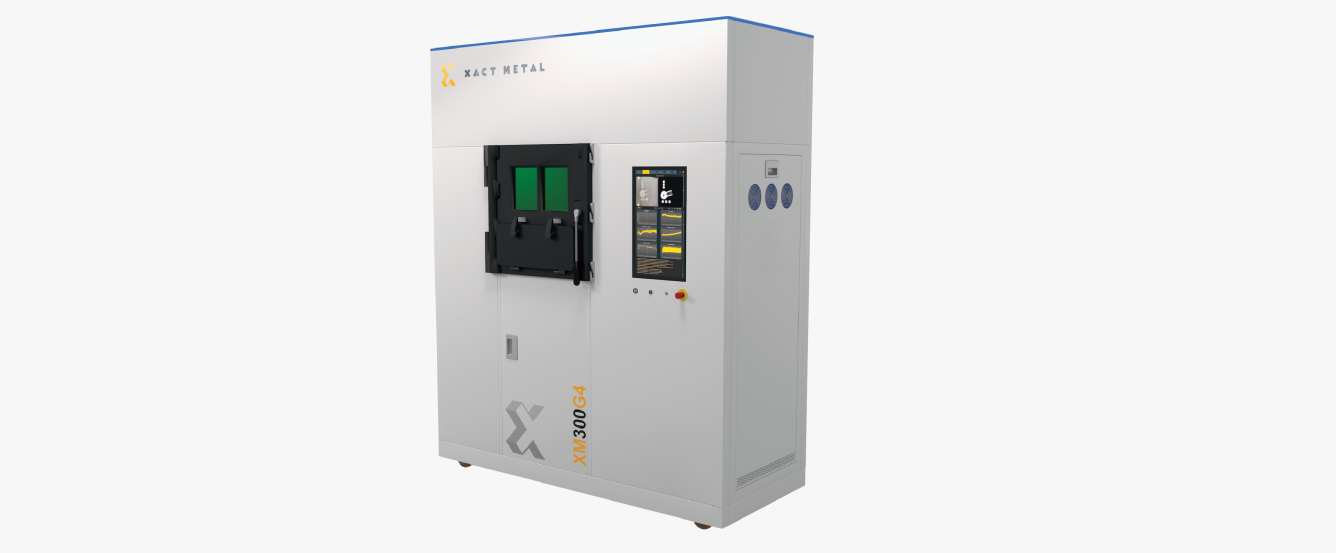

Xact Metal XM300G

High-Speed Metal 3D Printing for Industrial Applications

The Xact Metal XM300G series delivers industrial-speed metal additive manufacturing for large or high-volume parts, making it ideal for aerospace, automotive, and general manufacturing. With up to four independent lasers, a flexible build volume, and interchangeable platforms, the XM300G combines performance, precision, and affordability for small- to medium-sized companies.


Key Features

  • Flexible Laser Options: Single, dual, or quad-laser systems for maximum speed.
  • Large Build Volume: 300 x 300 x 350 mm, upgradeable to 300 x 300 x 450 mm.
  • High Power Lasers: Choice of 400W or 700W fiber lasers.
  • Faster Cycles: Interchangeable build platform reduces print turnaround time.
  • Industrial Applications: Supports high-performance parts across multiple industries.

Metal 3D Printing Process

Metal Powder-Bed Fusion is an additive manufacturing process that uses a laser to fuse successive layers of metal powder into a fully dense, finished part. This method enables complex internal and external geometries that are difficult or impossible with traditional manufacturing.

1

Pre-processing

Optimizing CAD build file for additive manufacturing

2

Print Preparation

Loading build file & preparing build volume and adding metal powder

3

Print

Precision controlled fusion of the metal powder into layers that form the desired shape and volume

4

Remove Your Part

Remove  the part from build plate with wire EDM, bandsaw, or flush cutting tool

5

Post-processing

Removal of supports , final surface finishing And heat treating for mechanical properties

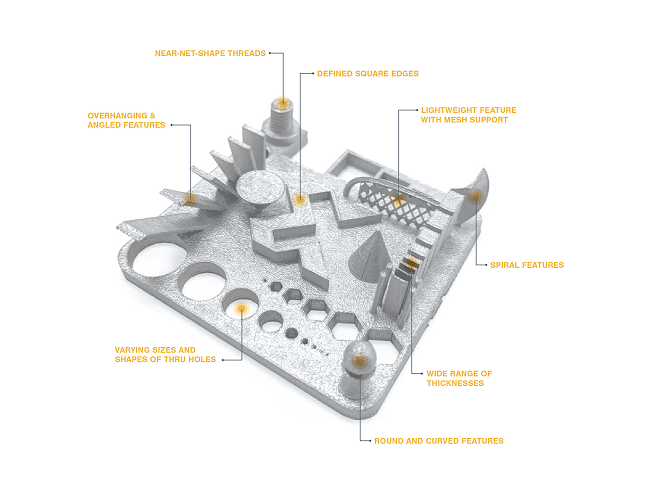

Technical Capabilities

Design Freedom with Metal 3D Printing

Metal Powder Bed Fusion enables the production of complex, high-precision geometries that are difficult or impossible to achieve with traditional manufacturing methods like machining or casting.


Applications

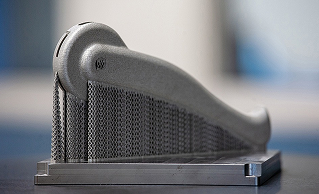

Prototyping

Xact Metal enables fast, local metal prototyping with parts that meet specified tolerances and material properties no debinding or sintering required.

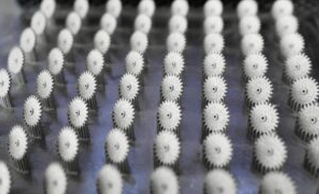

On-Demand Metal Production

Xact Metal makes small-batch metal production fast, affordable, and precise, delivering high-density, ready-to-use parts on demand.

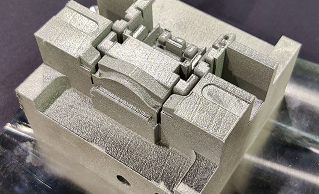

Accelerate Tooling and Development

Xact Metal delivers high-density, precise parts that speed development and reduce lead times, even for complex geometries.

Training for the Next Generation

Xact Metal 3D printers make metal additive manufacturing accessible and affordable, giving students hands-on experience with Industry 4.0 technologies.


Find the Right Xact Metal Printer for Your Needs

Compare the XM200G and XM300G to see which model fits your workflow— whether it’s accessible, small-batch prototyping and training, or high-speed, large-volume production for industrial applications.



XM200G

XM300G

Build Volume
150 x 150 x 150 mm
300 x 300 x 350 (–450) mm
Lasers
1–2 (100–400 W)
1–4 (400–700 W)
Power
Single-phase
Three-phase
Use Case
R&D, small-batch
Industrial production
Footprint
Compact
Mid-large

Technical Specifications

Build Volume
300 x 300 x 350 mm
Laser Type1
Yb Fiber Laser, 400W or 700W XM300G - Single laser XM300G2 - Dual laser XM300G4 - Quad laser 100% overlapping print zones
Build Speed
11.5 cc/hr (400W, Single laser)
Jogging Speed
21.3 m/sec
Precision Optics Spot Size
100 μm with dynamic spot size (70-140 μm)
Layer Thickness
20 up to 100 μm
Build Platform
Removable build platform Option for depowdering station
User Interface
24” intuitive user-friendly touch screen
Electrical
Three phase power
Exterior Dimensions
2,019 x 845 x 2,390 mm - W x D x H
Weight
XM300G - 726 kgs XM300G2 - 816 kgs XM300G4 - 907 kgs Approximate Weights
Powder Options3
Aluminum Si10Mg Bronze, Copper (C18150) Stainless Steel: 316L, 17-4 PH,15-5, 400 Series Super Alloys: 718, 625, CobaltChrome F75, Hastelloy® X, Titanium Ti64 Tooling Steels: Maraging M300
