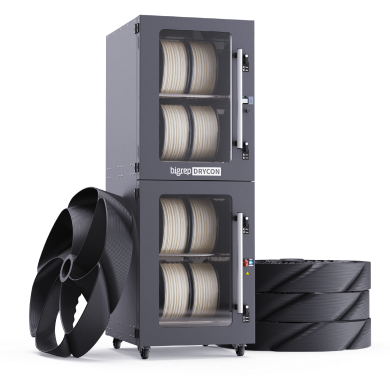

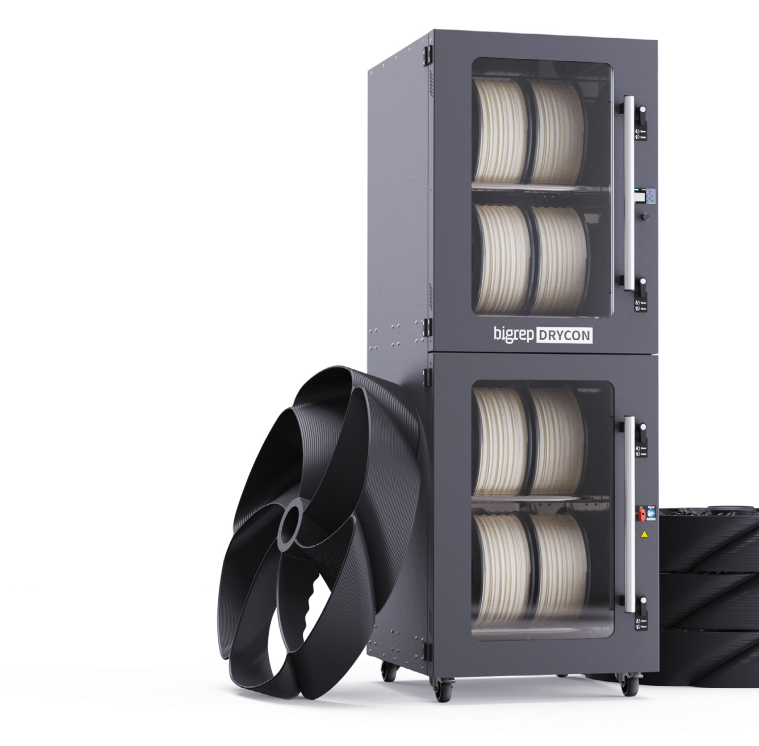

BigRep DRYCON

Product# 11040000

Key Features:

  • Dual chamber dries, stores, and anneals filament in one unit
  • Drying up to 120°C with active air exchange for efficient moisture removal
  • Annealing up to 180°C to improve part accuracy, heat resistance, and dimensional stability
  • High capacity, up to 48 small spools (0.75 kg) across both chambers
  • Direct filament feed via four outlets

Talk to an Expert

Ask one of our 3D Printing Specialists

Dont't Forget an Extended Warranty!
Low Price Guarantee - Price Match

Low Price Guarantee

Shop with Confidence

Dynamism will match a competing offer on qualified items. Learn More

Usually ships in 3-4 weeks
  • Brand New
  • Unlimited Toll-Free Support

Contact us for detailed purchasing support and custom pricing. A Dynamism 3D Printer specialist will contact you within one business day.

Who We Are

Founded in 1997, we bring next-generation technology to customers, with an emphasis on expertise and white-glove service. Showrooms in Chicago, Detroit, Tokyo, and Seoul.

Our Company

The leading national supplier of Desktop 3D printers. Expertise in both Industrial and Desktop 3D printing. Supplier of next-generation Metal, SLS, ultrafast Industrial printers.

Customer Benefits

  • White glove support
  • On-site support options
  • Training packages


Product Overview

2X

CHAMBERS

120°C

MAX DRYING TEMP

180°C

ANNEALING TEMP

24

SPOOLS .75KG

200m³/h

VOLUME FLOW

4

FILAMENT OUTLETS

The Complete Filament Management Solution

Moisture-damaged filament is one of the most common causes of print failure in professional FDM environments.

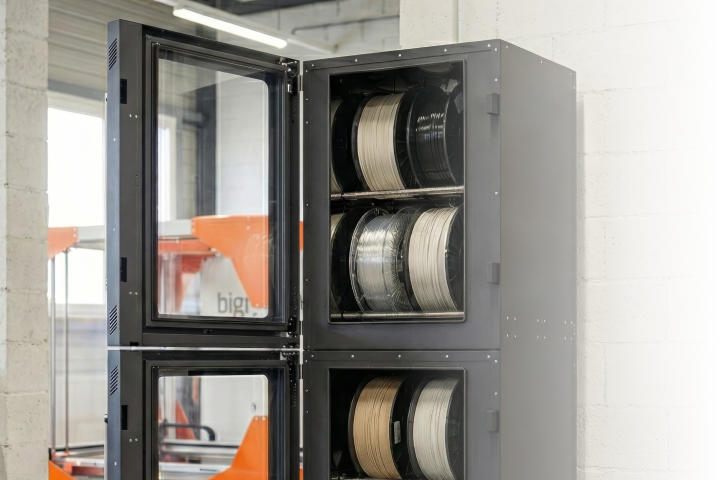

Dual-Chamber Architecture

Two fully independent chambers (780 × 455 × 410 mm each) let you dry and store different materials simultaneously, or dedicate one to active drying and one to annealing.

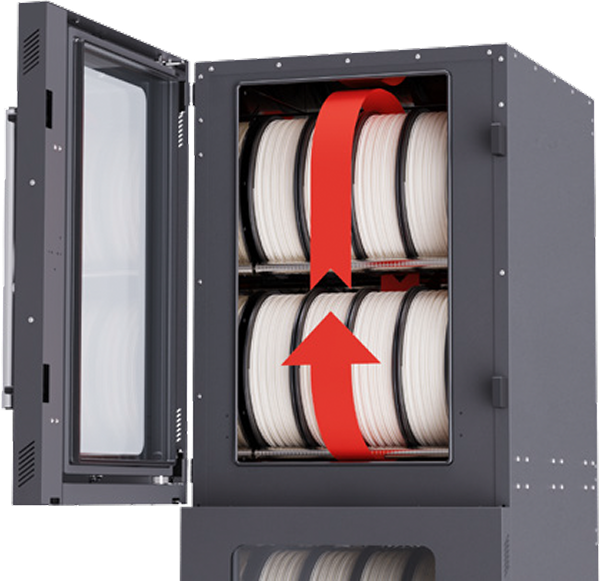

Active Air Exchange

Unlike passive desiccant solutions, the DRYCON actively circulates and exhausts humid air, providing consistent drying conditions while using less energy than competing methods.

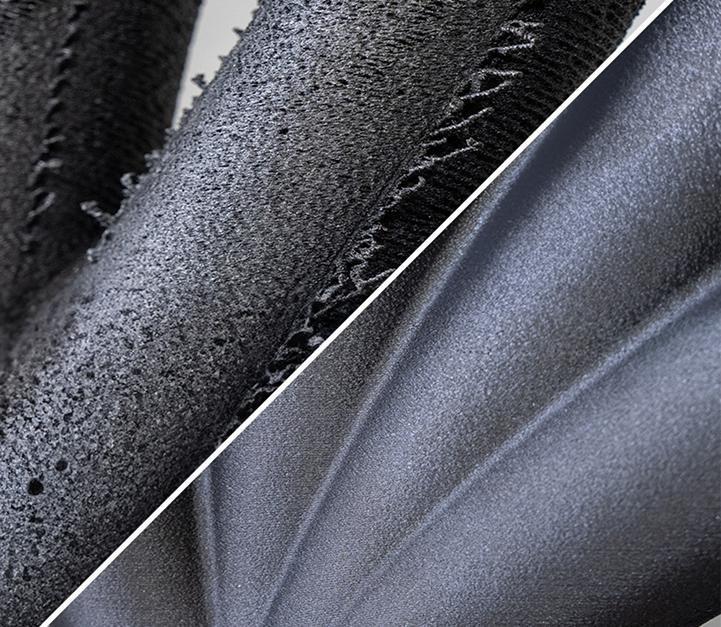

See the Difference

Properly dried filament produces parts with superior surface finish, dimensional accuracy, and inter-layer bonding. The DRYCON ensures your materials are always print-ready.

Why DRYCON vs. Basic Filament Dryers?

See what sets BigRep's industrial solution apart from off-the-shelf alternatives

Standard Filament Dryers

  • Single chamber, one material at a time
  • Manual filament transfer to printer
  • No annealing capability
  • Limited spool capacity (1–4 spools)
  • Passive or single-speed airflow

BigRep DRYCON

  • Dual independent chambers
  • 4 direct-feed filament outlets to printer
  • Annealing up to 180°C (bottom chamber)
  • Up to 24 spools per chamber (0.75 kg)
  • 200 m³/h active air exchange system

Key Features

Built for Industrial 3D Printing Workflows

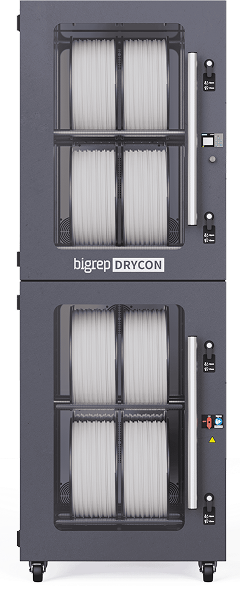

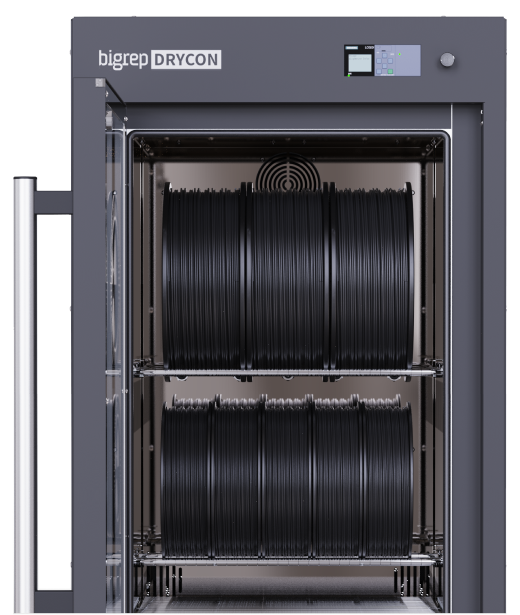

Dual Chamber Capacity

Two 780 × 455 × 410 mm chambers each hold up to 24 spools (0.75 kg), 16 spools (4.5 kg), or 8 spools (8 kg). Dry and store different materials simultaneously.

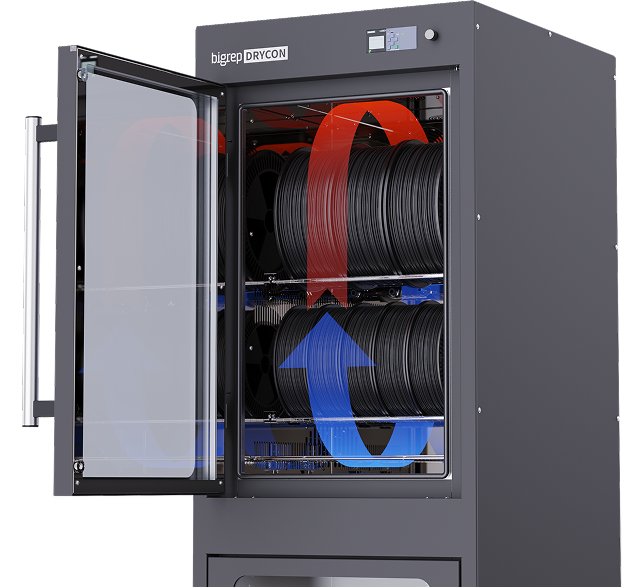

Active Air Exchange

200 m³/h airflow periodically replaces humid air with fresh air, removing moisture efficiently and maintaining consistent drying conditions throughout the cycle.

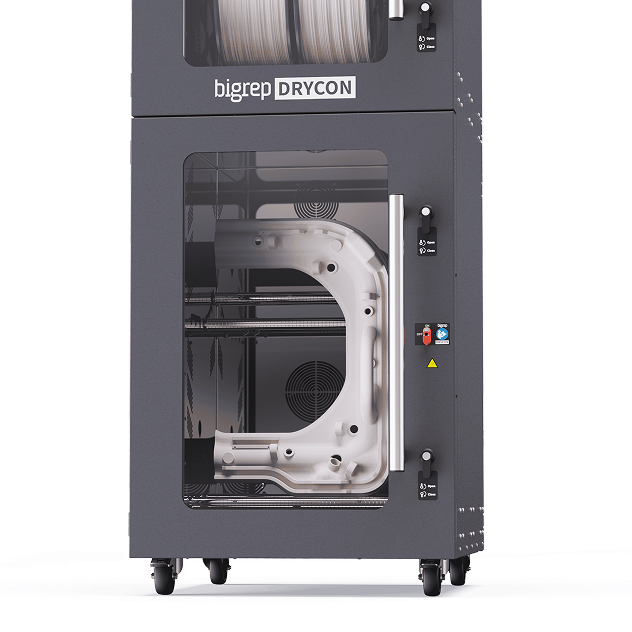

Annealing System

The bottom chamber heats to 180°C, enabling post-process annealing that significantly improves part accuracy, heat resistance, stiffness, and dimensional stability.

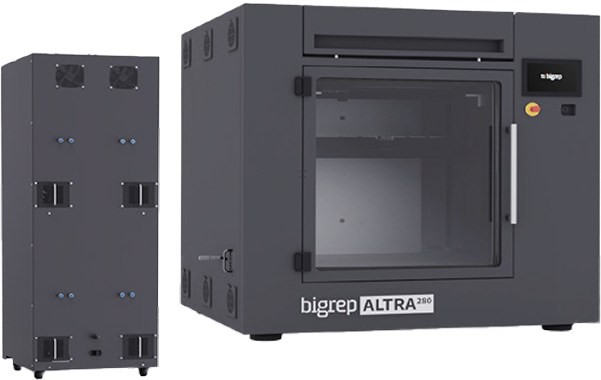

Direct Filament Feed

Four dedicated filament outlets let you feed material directly into your 3D printer, eliminating manual handling and keeping your workflow seamless and contamination- free.

Applications

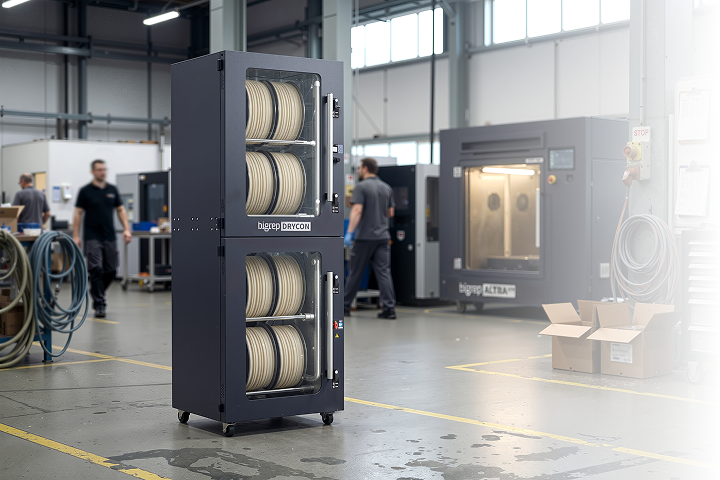

High-Volume Production

Keeps materials consistently print-ready across multi-shift operations, reducing failed prints and material waste in busy manufacturing environments.

Engineering & R&D Labs

Multiple material types can be stored and dried simultaneously, allowing engineers to switch between materials quickly without compromising quality.

Post-Process Annealing

Anneal finished parts in the 180°C bottom chamber to improve dimensional stability, heat resistance, and mechanical performance for functional end-use applications.

Materials that Need Drying to Achieve Superior Quality Prints

Technical, flexible, high-performance materials deliver high-performance parts with the DRYCON.

PA12 CF
Strong, durable, and with a high strength-to-weight ratio, PA12 CF is a perfect choice for parts with daily production usage under long-term stress.
PA6/66
An excellent choice for industrial applications, BigRep PA6/66 is strong, durable, and lightweight with high resistance to heat and chemicals.
TPU 98A
With high impact strength, tear strength, durability, and chemical resistance, parts printed with BigRep TPU 98A can withstand heavy wear and tear.
BVOH
BigRep's water-soluble support material, BVOH drastically reduces post-processing for 3D-printed parts, particularly for complex geometries.
ULTEM 9085
Often used in aerospace, automotive, and medical applications for its high strength-to-weight ratio, thermal stability, and flame resistance.
PEEK-A
Predominantly used for applications that need exceptional mechanical, thermal, and chemical resistance in aerospace, automotive, and medical industries.

Specifications

PARAMETER
VALUE
Chamber Dimensions (H×W×D)
780 × 455 × 410 mm | 30.71 × 17.91 × 16.14 in
Spool Capacity per Chamber
12 × 0.75 kg · 8 × 4.5 kg · 4 × 8 kg
Max Drying Temperature
120°C (upper chamber)
Max Annealing Temperature
180°C (lower chamber)
Volume Flow Rate
200 m³/h
Power Supply
1P-AC 208–240 Vac, 50/60 Hz, 16 A
Power Consumption
Maximum 2.3 kW
Device Dimensions (H×W×D)
1921 × 691 × 890 mm
Door Dimensions (H×W)
920 × 680 mm (36.22 × 26.77 in)
Filament Outlets
4 direct-feed outlets

Compatible With

BigRep ONE.5x

BigRep STUDIO G2

BigRep ALTRA

BigRep PRO

Compatible with all BigRep 2.85mm filament materials including PLA, PETG, TPU 98A, PRO HT, PLX, HI-TEMP, BVOH, and more.
