Born from the drive for absolute quality, the Pro2 Plus refines 3D printing for production-grade environments, upgrading and evolving traditional manufacturing.
Key Features:
Fused Filament Fabrication (FFF) 3D Printer
305 x 305 x 605 mm
Material Extrusion
A large, ready-to-print desktop 3D printer with added Z height compared to the Pro2
1 year manufacturer's warranty on heating rods, thermal sensors, heat beds, and circuit boards, one year limited manufacturer's warranty on all other non-consumable parts.
Founded in 1997. Offices in Chicago and Denver. Four showrooms across the U.S.
Our Company
The leading national supplier of Desktop 3D printers. Expertise in both Industrial and Desktop 3D printing. Supplier of next-generation Metal, SLS, ultrafast Industrial printers.
Customer Benefits
Unlimited toll-free support
Curated selection
Fast shipping
Product Overview
Raise3D Pro2 Plus 3D printer
Competitive and scalable; the Pro2 improves upon its award winning predecessor and provides the next generation of performance
Electronic Driven Lifting Dual Extrusion
Automatically switch between nozzles in less than a second with the Raise3D Electronic Driven Lifting Dual Extrusion system, all with 5 micron accuracy. The idle extruder is lifted out of the way, preventing nozzle dragging and increasing print quality.

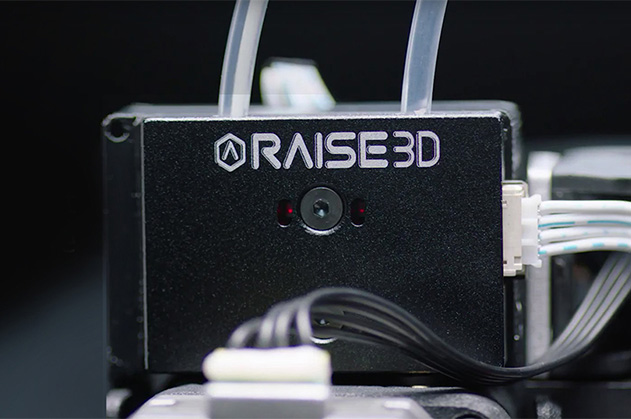

Filament Run-Out Sensor
The optical run-out sensor feature automatically pauses printing when no filament is detected, giving operators the opportunity to get the most out of their materials and saving prints from avoidable run-out print failures.
Big Build Volume
24/7 Reliability, High-Strength Aluminum Frame
Single Extruder:
12 x 12 x 23.8 in (305×305×605 mm)
Dual Extruder:
11 x 12 x 23.8 in (280×305×605 mm )
300°C High Temperature Hot End Provides Material Flexibility
An excellent maximum temperature allows printing in materials like Nylon and Polycarbonate as well as more standard materials like PLA, ABS, TPU, HIPS, PETG, and fiber/powder filled materials.

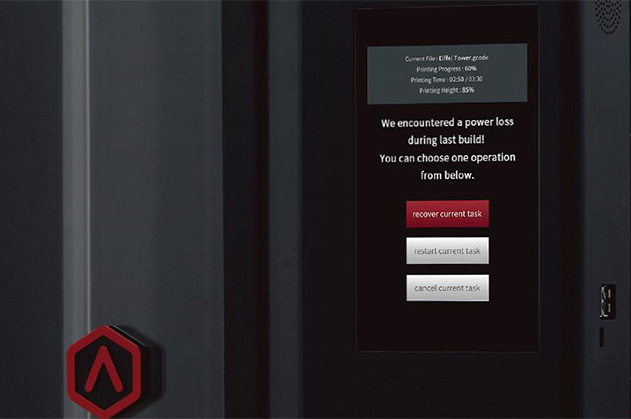

Second Generation Power Loss Resuming
Recover prints after an outage with Raise3D’s second generation power loss resuming technology.
Additional Features
HEPA Filtration
New Build Plate System
Built-in Camera
Wireless Printing and Control
Active Cooling Fan
High Quality Optical End-Stops
Improved Hot End Isolation and Nozzles
Software Controllable Standalone Active Cooling Fan
Layer Resolution: Nozzle dependent, 10-400 micron XY Step Size: 0.78125 micron Z Step Size: 0.78125 micron Print Head: Dual-head with electronic lifting system Nozzle Diameter: 0.4 mm Brass Included, 0.2/ 0.4/ 0.6/ 0.8/ 1.0 mm Hardened Steel available Maximum Extrusion Rate: 13.82 cubic millimeters per second Maximum Nozzle Temperature: 300C Print Head Travel Speed: 30 - 150 mm/s Print Surface: Heated aluminum build plate with magnetic holding, Silicon surface Maximum Print Surface Temperature: 110C Print Surface Calibration and Leveling: Pre-calibrated leveling Build Volume: Single Extrusion: 30.5 x 30.5 x 60.5 cm [12 x 12 x 23.8 in] Dual Extrusion: 28 x 30.5 x 60.5 cm [11 x 12 x 23.8 in] Filament Diameter: 1.75 mm Supported Filament: Open filament system compatibility Print Technology: FFF
Printer Dimensions: 62 x 59 x 111 cm [24.41 x 23.23 x 43.5 in] Shipping Weight: 82 kg [180.4 lbs] Shipping Dimensions: 75 x 75 x 136 cm [29.53 x 29.53 x 53.54 in] Additional Features: Resume print after power outage, filament run-out sensor, remoted user interface, HEPA filtration Noise Emission: ＜50 dB(A) when building Ports: USB 2.0 x2, Ethernet x1
