Shining3D Handheld 3D Scanners

Key Features:

• 17 blue laser lines + IR VCSEL for high-resolution scanning
• 90 fps capture rate, 2.5 million points/second
• Scans black, reflective, and metallic surfaces without spray coating
• Swappable battery for up to 3 hours cordless scanning

Key Features :

• Handheld Hybrid Blue Laser / Infrared VCSEL 3D Scanner
• Metrology-grade accuracy up to .02mm
• Compact Size: 193mm x 63mm x 53mm

Hardware Requirements:

• Intel Core i7 3770 or equivalent processor
• NVidia graphics card with at least 1280 CUDA cores
• 32GB RAM minimum
• USB 3.0 connection

Supported OS: Windows 10/11 64-bit

Please Note: This is a previously used demo unit. Includes three month Dynamism warranty.

The truly portable and versatile handheld 3D scanner for high resolution results.

• Handheld LED Light Source 3D Scanner
• 10 - 30 frames per second scan speed
• 3,000,000 max points per second using Handheld HD scan mode
• Optional industrial pack and color scanning module
• Ideal for small to medium sized, high-detail objects such as jewelry

Hardware Recommendations:

• Intel Core i7-8700 or equivalent processor
• NVIDIA GTX/RTX series graphics cards, higher or equal to GTX 1080 with at least 960 CUDA cores
• 4 GB minimum VRAM, 16 GB minimum RAM, 64 GB minimum system memory
• USB 3.0 connection

Supported OS: Windows 10 (64bit)

Please Note: This is a previously used demo unit.  Includes three month Dynamism warranty

EinScan Expert Certified

Dynamism is an awarded Gold EinScan Expert Reseller. The certification acknowledges Dynamism’s superior pre-sale and post-sale support for EinScan products and customers.

Order now and receive a free Accessories Pro Kit!

Key Features:

• Tri-Mode Hybrid Scanning
• Up to 0.04mm precision, 0.05mm resolution
• Full-Color Texture Capture – 5MP color camera
• Fully Wireless and Portable

Key Features:

• MEMS projector with a resolution of up to 0.05mm
• VCSEL projector capable of working under direct sunlight
• 48MP camera for lifelike colors
• Color: Titanium Gray

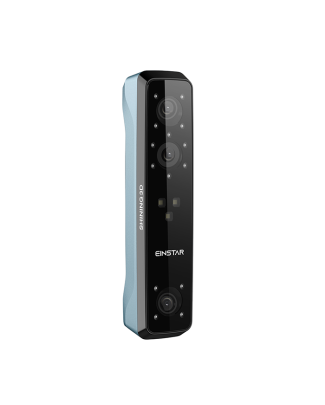

The Einstar 3D Scanner makes data capturing simple with its revolutionary stabilization techniques, all at an affordable price point.

Key Features

• Handheld and easy-to-use 3D scanner
• Up to 14 FPS Scan Rate
• Full color and outdoor scanning capabilities
• Includes EXStar software

Hardware Recommendations :

• Intel Core i7-11800H or higher processor
• NVIDIA GeForce GTX 1060 or higher
• 32GB RAM or above
• USB 3.0 connection

Supported OS: Windows 10/11 64-bit

Please Note: This item is unable to be shipped outside the U.S.

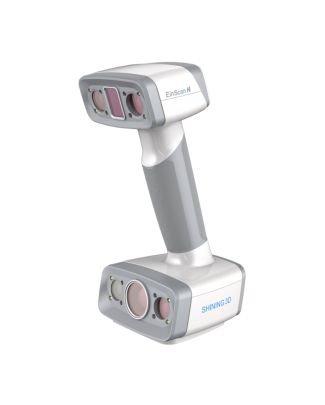

The EinScan H provides hybrid infrared and LED light scanning, creating a solution for difficult to scan surfaces while delivering high quality full-color 3D data within minutes.

• Handheld Hybrid Infrared / LED 3D Scanner
• 20 frames per second scan speed
• 1,200,000 max points per second
• Full color texture capturing included
• Ideal for full color scanning of objects, difficult to scan dark surfaces, and head / body scans including hair



Hardware Recommendations:

• Intel Core i7-8700 or higher processor
• NVIDIA GTX/RTX series graphics cards, higher or equal to GTX 1080 with at least 960 CUDA cores
• 4 GB minimum VRAM and 32 GB minimum RAM
• USB 3.0 connection

Supported OS: Windows 10 (64bit)

Please Note: This is a previously used demo unit. Includes three month Dynamism warranty



EinScan Expert Certified

Dynamism is an awarded Gold EinScan Expert Reseller. The certification acknowledges Dynamism’s superior pre-sale and post-sale support for EinScan products and customers.

The EinScan H provides hybrid infrared and LED light scanning, creating a solution for difficult to scan surfaces while delivering high quality full-color 3D data within minutes.

• Handheld Hybrid Infrared / LED 3D Scanner
• 20 frames per second scan speed
• 1,200,000 max points per second
• Full color texture capturing included
• Ideal for full color scanning of objects, difficult to scan dark surfaces, and head / body scans including hair



Hardware Recommendations:

• Intel Core i7-8700 or higher processor
• NVIDIA GTX/RTX series graphics cards, higher or equal to GTX 1080 with at least 960 CUDA cores
• 4 GB minimum VRAM and 32 GB minimum RAM
• USB 3.0 connection

Supported OS: Windows 10 (64bit)

Please Note: Not compatible with AMD processors.

Warranty extension is limited to two years total (one extension), and must be purchased while the standard warranty is active.

EinScan Expert Certified

Dynamism is an awarded Gold EinScan Expert Reseller. The certification acknowledges Dynamism’s superior pre-sale and post-sale support for EinScan products and customers.

The EinScan Pro HD Reverse Engineering Design Bundle provides high-quality 3D scanning with improved efficiency.

• Handheld LED Light Source 3D Scanner
• 10 - 30 frames per second scan speed
• 3,000,000 max points per second
• Optional color scanning module
• Ideal for reverse engineering applications, cast metal and dark surfaces, intricate textured surfaces

• EinScan Pro HD Scanner
• Industrial Pack
• Geomagic Essentials Single Seat License

Hardware Recommendations:

• Intel Core i7 or equivalent processor
• Quadro card P1000 and above or NVIDIA GTX660 and higher graphics card with at least 960 CUDA cores
• 4 GB minimum VRAM and 16 GB minimum RAM
• USB 3.0 connection

Supported OS: Windows 7, 8.1, or 10 (64bit)
Please Note: Not compatible with AMD processors.

EinScan Expert Certified

Dynamism is an awarded Gold EinScan Expert Reseller. The certification acknowledges Dynamism’s superior pre-sale and post-sale support for EinScan products and customers.

Now includes free Industrial Pack and Color Pack!

The EinScan Pro HD provides high-quality 3D scanning with improved efficiency.

• Handheld LED Light Source 3D Scanner
• 10 - 30 frames per second scan speed
• 3,000,000 max points per second
• Optional industrial pack and color scanning module
• Ideal for cast metal, dark, and intricate textured surfaces

Hardware Recommendations:

• Intel Core i7 or equivalent processor
• Quadro card P1000 and above or NVIDIA GTX660 and higher graphics card with at least 960 CUDA cores
• 4 GB minimum VRAM and 16 GB minimum RAM
• USB 3.0 connection

Supported OS: Windows 7, 8.1, or 10 (64bit)

Please Note: Not compatible with AMD processors.

Warranty extension is limited to two years total (one extension), and must be purchased while the standard warranty is active.

EinScan Expert Certified

Dynamism is an awarded Gold EinScan Expert Reseller. The certification acknowledges Dynamism’s superior pre-sale and post-sale support for EinScan products and customers.

Updated Version Available

EinScan Pro HD

View the Product

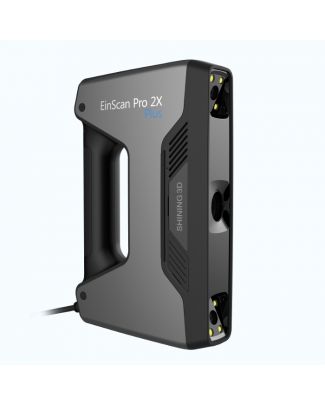

The EinScan Pro 2X Plus provides an enhanced Handheld HD Scan Mode and enlarged scan range compared to the EinScan Pro 2X.

• Handheld LED Light Source 3D Scanner
• 20 - 30 frames per second scan speed
• 1,500,000 max points per second
• Optional industrial pack and color scanning module
• Ideal for medium to large sized objects

• EinScan Pro 2X Plus Scanner
• Solid Edge Shining 3D OEM Edition Single Seat License

Hardware Recommendations:

• Intel Core i7 or equivalent processor
• NVidia graphics card with at least 960 CUDA cores
• 4 GB minimum VRAM and 16 GB minimum RAM
• USB 3.0 connection

Supported OS: Windows 7, 8.1, or 10 (64bit)
Please Note: Not compatible with AMD processors.

EinScan Expert Certified

Dynamism is an awarded Gold EinScan Expert Reseller. The certification acknowledges Dynamism’s superior pre-sale and post-sale support for EinScan products and customers.
